Overview

The backend app includes a registry directory that holds a structured representation of all data within the OEPS warehouse. The registry serves as a central content hub from which all data export and transformation operations can be carried out, via CLI commands.

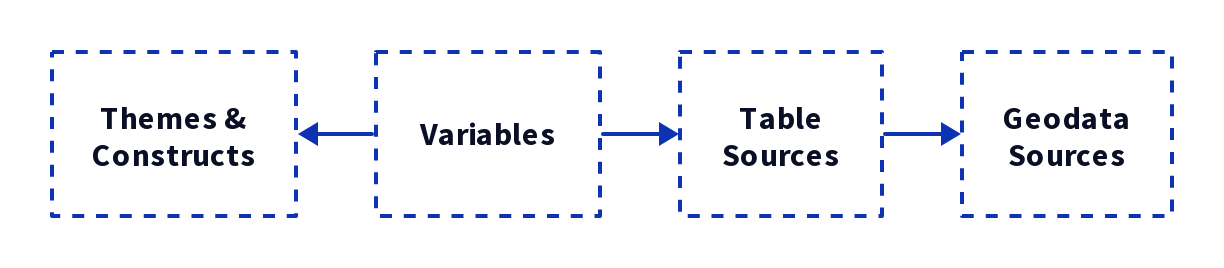

The registry is made up of these four components:

basic registry diagram

Rationale

The core rationale for this setup is to treat individual variables as the lowest common denominator within the system, allowing the concept of a variable to be shared across as many tables and data sources as needed. For example, "Total Population" is a variable that has a value in 16 different tables--by state in 2010, by county in 2010, by state in 2000, etc. The registry allows us to define this variable one time, and then link it with multiple data sources, each of which in turn links to the proper geospatial dataset.

Thus, the registry seeks to achieve the following:

  • Reduce duplicative variable and source metadata representations
  • Facilitate export to multiple configurations and formats, specifically
  • Provide a framework for future addition of variables

The composition of the registry is largely inspired by Frictionless data specs, which are used to generate Data Packages, Data Resources, and other forms of data dictionaries and downloadable content.

Themes and constructs provide a mechanism through which variables can be organized within the risk environment framework, creating a thematic hierarchy without directly affecting the structure of the data or datasets themselves.

Structure

The variables.json file holds a comprehensive lookup of all individual variables that are present in any source file, each defined by a suite of metadata properties that describe. One of these properties, table_sources is a list of ids for all table sources in which a value for this variable can be found.

Each table source (CSV) is in turn described by a JSON file in the table_sources directory, and linked via a geodata_source property to a similar entry in the geodata_sources directory. All joins must be performed on the HEROP_ID field.

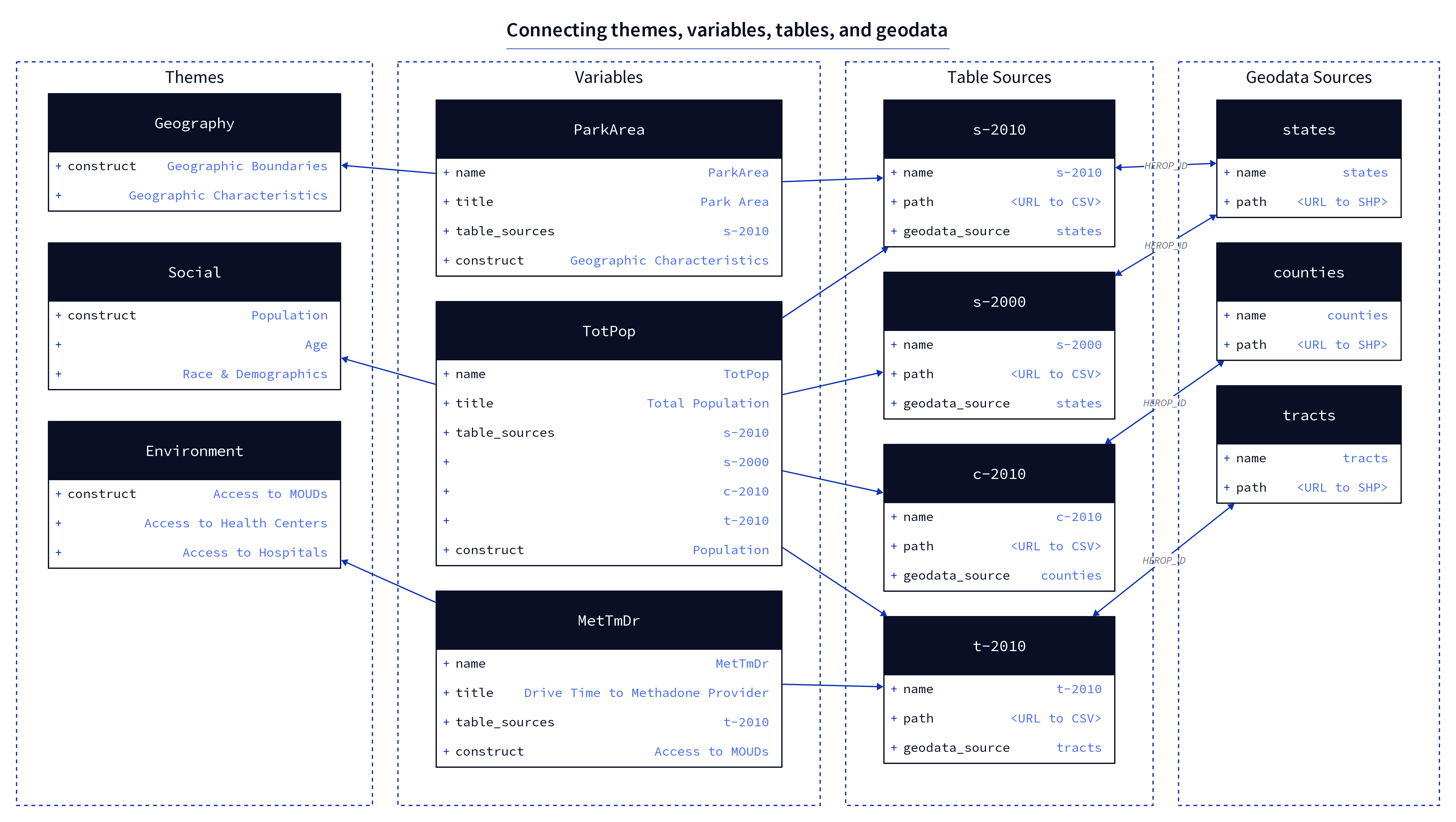

illustration of connections between registry content

The diagram above illustrates how three different example variables would be defined and connected to data sources. Only the necessary properties are shown for each item, but a detailed explanation of all properties can be found in the following sections.

To explain the example:

  • ParkArea is a state level calculation (area of parks within a state) and it has only been calculated for 2010, so it is only stored in one table, called s-2010 here.
  • TotPop (total population) has a value in many different tables: at the state, county, and tract level in 2010 (s-2010, c-2010, and t-2010, respectively), as well as at the state level in 2000 (s-2000). As you can see, the table_sources field in TotPop lists all of these table ids.
  • MetTmDr is the average drive time (in minutes) for how long it takes to access a methadone provider. This variable has only been calculated at the tract level, using 2010 data.

Though these three variables are present in four different data source tables, you will notice that these tables only link to three different geodata sources. This is because both of the state-level data sources, 2010 and 2000, can be joined to the same single states geodata source.

While this is a very small example (currently we have over 300 variables), it should be enough to illustrate the theoretical flexibility of the setup.

What's in the Registry?

The easiest way to browse all entries in the registry is to filter through the following CSV files that are stored in Github.

These files are derived from the JSON files that make up the registry, and should generatelly be up-to-date.
